Neovascular Phenotypes: Polypoidal Choroidal Vasculopathy



Author:

Rufino Silva, MD, PhD
Coimbra University Hospital. Faculty of Medicine. Coimbra. Portugal





Introduction



Polypoidal choroidal vasculopathy (PCV) was described for the first time in 1982(1).

Different names were proposed like posterior uveal bleeding syndrome(2) or multiple recurrent retinal pigment epithelium detachments in black women(3).

It has a characteristic imaging expression on indocyanine green angiography (ICG), peculiar characteristics in optical coherent tomography (OCT) and apparently different responses to treatments when compared to occult or classic choroidal neovascularization.

Diagnosis is based on ICG and confirmed with fundus characteristics and OCT findings.

The primary abnormality involves the choroidal circulation and the characteristic lesion is an inner choroidal vascular network of vessels ending, in the great majority of cases, in an aneurismal dilatation.

Clinically a reddish orange, spheroid, polyp-like structure may be observed.

The natural course of the disease often follows a remitting-relapsing course, and clinically, it is associated with chronic, multiple, recurrent serosanguineous detachments of the retinal pigment epithelium and neurosensory retina with long-term preservation of good vision(4).

A more recent knowledge has expanded the spectrum of PCV allowing us a more clear characterization of PCV. However, the classification of PCV as distinct subtype of exudative age-related macular degeneration (AMD) easily differentiated from other diseases and other subtypes of choroidal neovascularization associated with AMD is still controversial.

Polypoidalchoroidal vasculopathy has also been described in different pathological conditions including central serous chorioretinopathy(5), circumscribed choroidal hemangioma(6);  melanocytoma of the optic nerve(7); pathological myopia and staphyloma(8); or  choroidal osteoma(9). PCV seems to behave more like a neovasculopathy occurring in a variety of different diagnoses than a distinct abnormality of the inner choroidal vasculature(10)



Pathogenesis



The pathogenesis of PCV is not completely understood.

It is widely accepted to be originated at the inner choroidal level.

Polyps may develop from a choroidal vascular network or from a plaque of occult new vessels(4,13,14).

Yuzawa et al.(14) described the filling of PCV lesion simultaneously with the surrounding choroidal arteries suggesting that PCV lesions grow from inner choroidal vessels.

Few clinicopathological studies have been reported.

MacCumber et al.(15) examined an enucleated high myopic eye with rubeosis and vitreous haemorrhage from a diabetic patient without diabetic retinopathy, with high blood pressure and history of multiple, bilateral, recurrent neurosensory and pigment epithelium detachments.

Bruch’s membrane was crossed by choroidal vessels and an extensive fibrovascular proliferation was disclosed within Bruch’s membrane and the inner retinal space.

They did not observe choroidal saccular dilatations except that some choroidal veins were quite large.

Inflammation was expressed by the presence of B and T lymphocytes at the level of choroid and fibrovascular tissue and the expression of intercellular adhesion cytokines like ICAM-1 was shown.

Lafaut et al.(16) reported the histopathologic features of surgically removed submacular tissue from an elderly patient with a pattern of polypoidal choroidal vasculopathy on indocyanine green angiography.

A thick fibrovascular membrane located on the choroidal side of the retinal pigment epithelium (RPE) was described.

The RPE layer was discontinuous whereas on its choroidal side an almost intact layer of diffuse drusen was observed.

A group of dilated thin-walled vessels were found and located directly under diffuse drusen within a sub-RPE, intra-Bruch’s fibrovascular membrane.

Dilatations appeared to be of venular rather than arteriolar origin and some lesions were associated with lymphocytic infiltration.

The presence of choroidal infiltration by inflammatory cells was also referred by Rosa et al.(17)

Okubo et al.(18) described unusually dilated venules adjacent to an arteriole with marked sclerotic changes and newly formed capillaries within the wall of the degenerate arteriole and near the dilated venule.

Therasaki et al.(19) described clusters of dilated thin-walled vessels surrounded by macrophages and fibrinous material in neovascular membranes obtained from submacular surgery for PCV.

Hyalinization of choroidal vessels and massive exudation of fibrin and blood plasma were observed in all the five specimens of PCV lesions studied by Nakashizuka H et al.(20).

They also found some blood vessels located above the RPE in two of the five eyes. Immunohistochemically, CD68-positive cells were described by them around the hyalinized vessels.

There were no alpha-SMA-positive cells in the vessels of PCV. CD34 staining showed endothelial discontinuity.

Vascular endothelial cells within the PCV specimens were negative for VEGF. HIF-1alpha positive inflammatory cells were located in the stroma of specimens(20).

Hyalinization of choroidal vessels, like arteriosclerosis, seems to be characteristic of PCV(20).

All these previous histopathological studies identifying a large spectrum features (like dilated choroidal vessels, intra-Bruch’s neovascularization, inflammatory cells, drusen material, thick membranes, single saccular dilatations or clusters of dilated thin walled vessels) may partially being expressing the influence of disease stage(21).

For many authors(4,12,16,22-25) and following the results of clinicopathological studies, PCV may represent a subtype of exudative AMD.

Yannuzzi et al.(24,25) found a prevalence of 7.8% of PCV in a population with signs of exudative AMD and Laffaut et al.(16) described the presence of late ICG hyperfluorescent plaques in 58% of 45 cases with PCV, proposing that PCV should be considered a subtype of exudative AMD.

Many other authors(23,24,25) describe PCV cases with subretinal neovascularization.

Ahuja et al.(27) described a prevalence of PCV in 47% of a consecutive series with 16 eyes diagnosed as exudative AMD and showing a PED greater than 2 mm of diameter, haemorrhage or retinal neurosensory exudation.

According to Yannuzzi(24,25) PCV and exudative AMD may differ in mean age of onset (PCV affected patients are younger), presence of exudative peripapillary lesions (more frequent in PCV), prevalence of soft drusen (greater in AMD patients) and ethnicity (PCV more prevalent in non-white population).

PCV also has less tendency to develop fibrous proliferation and a higher incidence of neurosensory and PE detachments.

PCV and AMD share common genetic factors, which suggests that PCV and wet AMD are similar in some pathophysiologic aspects.

A common genetic background may exist between typical exudative AMD and PCV patients. Complement pathway plays a substantial role in the pathogenesis of PCV, like in AMD.

A consistent association of the ARMS2/HTRA1 locus with both neovascular AMD and PCV, suggests that the two diseases at least in part share molecular mechanisms (26)

The nonsynonymous variant I62V in the complement factor H gene is strongly associated with polypoidal choroidal vasculopathy and may be a plausible candidate for a causal polymorphism leading to the development of PCV, given its potential for functional consequences on the CFH protein(28).

The LOC387715/HTRA1 variants are associated with PCV and wet AMD in the Japanese population. The associations are stronger in AMD than in PCV(29).

LOC387715 rs10490924 correlates with vitreous hemorrhage, and also with the lesion size. Rs10757278 on chromosome 9p21 was shown to be significantly associated with the risk of PCV in Chinese Han patients(30).

Among the patients with AMD and PCV, those with a homozygous HTRA1 rs11200638 risk allele seem to have larger CNV lesions(31).

Another susceptibility gene in PCV, the elastin gene (ELN), has shown to be more associated with PCV than with AMD(32).

The gene which codes mitochondrial protein in photoreceptors (LOC387715 rs10490924), was found to be strongly associated with PCV and presented a different distribution in AMD and PCV(33)

PCV has been referred to be associated with other ocular disorders like macroaneurysms or inflammatory diseases(4,34).

However, this association is still inconclusive and deserves further investigation.

A relation between the retinal vascular changes in hypertensive retinopathy, like vascular remodelling, aneurismal dilatations and focal vascular constrictions, and choroidal alterations in PCV was proposed by Ross et al.(34).



Epidemiology



PCV is usually diagnosed in patients between 50 and 65 years old but the age of diagnoses may range between 20 and more than 80 years.

Most patients with PCV are likely to have AMD signs.

Prevalence of PCV in patients with AMD signs, ranged between 4.8% and 23% in different series and different countries(3,4,11-15).

It is considered to be more prevalent in Asian population(11) and African American than in Caucasian(3,4,12,13) as it seems to preferentially affect pigmented individuals.

Preference for female gender is referred in Caucasian(4,12,13) whilst in Asian population male are more affected(11,14).

Bilateral involvement is common and may be as high as 86%(12).



Natural evolution



The disease has a remitting-relapsing course and is associated with chronic, multiple recurrent serosanguineous detachment of the neurosensory retina and RPE, with long-term preservation of vision(4,24,25).

Visual acuity (VA) loss is associated with central macular involvement and may range from mild to severe VA loss or blindness.

Treatment of central macular lesions with PDT and more recently with antiangiogenic drugs has precluded a better knowledge of natural history of PCV with macular involvement.

Approximately half the patients with PCV lesions in the posterior pole may have a favourable course without treatment(35).

In the remaining half the disorder may persist for a long time with occasional repeated bleeding and leakage, resulting in severe macular damage and VA loss.

Eyes with a cluster of grape-like polypoidal dilations of the vessels may have a higher risk for severe visual loss(36,37).

Choroidal vascular lesions may be located in the peripapillary area, in central macula or in midperiphery.

Most of the PCV natural history series describe lesions in the posterior pole, differentiating macular from extramacular and/or peripapillary polyps(11,13,37,38).

Macular involvement ranged from 25% to 94%.

The analysis of VA outcome must consider location of polyps and/or abnormal vascular network.

Kwok et al.(37) followed the natural history of nine eyes with macular involvement after a follow-up ranging from 5 to 60 months and found VA improvement of two lines in only one eye (11.1%), VA change of one line in one eye, and VA decrease of two lines in seven eyes (77.7%).

Uhyama et al.(35) followed 14 eyes with PCV (13 with macular involvement) for a mean period of 39.9 months and described VA improvement of two lines in five eyes (35.7%) and VA decrease of two lines in four eyes (28.5%).

A favorable course was demonstrated in 50% of the cases with the remaining half of the cases showing recurrent leakage and hemorrhages and progressive VA loss.

Lesions may grow by enlargement with proliferation and hypertrophy of the vascular component but, apparently not by confluence.

Polyps may bleed, grow, regress or leak and a choroidal neovascularization may appear.

A massive spontaneous choroidal hemorrhage is rare but may constitute a severe complication associated with blindness(36).

Progression to RPE atrophy is common and may be related with resolution of PED, chronic or recurrent leakage with PE or neurosensory detachment, autoinfarction, regression or flattening of the lesion.

Chronic atrophy and foveal cystic degeneration is associated with severe VA loss(2,4,16,23,24,25,38).



Diagnosis



The diagnosis of PCV is based on ICG imaging (Fig. 1) and may be complemented with OCT, fluorescein angiography and fundus findings (Fig.2,3,4).

Clinical examination may show one or more redish-orange, spheroid, subretinal mass located at the macular or juxtapapillary area (Fig.2).

This mass may correspond to the anteriorly projection of multiple polyps and is very suggestive of PCV.

Also very suggestive of PCV is the serous or serous-hemorrhagic PED and/or neurosensory detachment associated with extensive subretinal haemorrhages and circinate hard exudates (Fig.1,2,4).

Fluorescein angiography alone is useful for PCV diagnosis.

Neurosensory detachment and serous or sero-hemorrhagic PED may suggest the diagnosis but polypoidal lesions are only visualized if the overlying pigment epithelium is atrophic.

Intermediate or late leakage on fluorescein angiography is very often diagnosed as occult choroidal neovascularization with late leakage from undetermined source or may be confused with chronic central serous chorioretinopathy.

The characteristic PCV lesion in ICG is an inner abnormal choroidal vascular network of vessels ending, in the great majority of cases, in aneurysmatic dilatations.

The lesion may be juxtapapillary, macular or may be rarely located in the midperiphery.

Juxtapapillary lesions often show, in early ICG images, a radial arching pattern, and the vascular channels may be interconnected by smaller spanning branches more numerous at the edge of the lesions(38).

When the polipoydal lesion is located in the macular area the vascular network often arise in the macula and follows an oval distribution(38).

The area surrounding the vascular network is hypofluorescent during early phases of ICG and in late phase ICG angiography often shows a reversal of the pattern: the area surrounding the polypoidal lesion becomes hyperfluorescent and the centre shows hypofluorescence.

In very late phases ICG shows disappearance of the fluorescence (washout) in non-leaking lesions (Fig.4-d)(4,22,24,25).

OCT and particularly 3-D OCT is very useful for diagnosis confirmation.

Documentation of polyps (number, location, size) and associated features (neurosensory detachment, serous or haemorrhagic PED, haemorrhage) may be assessed by OCT. Particular findings like the undulation of RPE (corresponding to the branch vascular network), double layer sign (the inner layer is RPE and the outer layer is the inner boundary of the Bruch/choroid complex), Bruch membrane thinning, the identification of polyps under a detached RPE and thicker choroid compared with typical neovascular AMD.

Polypoidal lesion and branching vascular network identified in ICG may be visualized on spectral domain OCT in near 95% of the cases as areas of moderate reflectivity between the clearly delineated abnormal section of retinal pigment epithelium and Bruch’s membrane(39).

Polypoidal lesions are visualized as anterior protrusions of a highly reflective RPE line.

With “en face OCT”(40) branching vascular networks were detected as elevations of the RPE.

Serous pigment epithelial detachments may be seen as round protrusions of the RPE and are often accompanied by adjacent smaller round protrusions of the RPE, consistent with polypoidal lesions.

These protrusions of the RPE are often fused and typically appeared as a ‘snowman’.

Subsequent longitudinal examination reveals the polypoidal lesions to be sharp protrusions of the RPE with moderate inner reflectivity.

Consistent with the location of the branching vascular network, a highly reflective line may be seen often just beneath the slightly elevated reflective line of RPE(39,40).

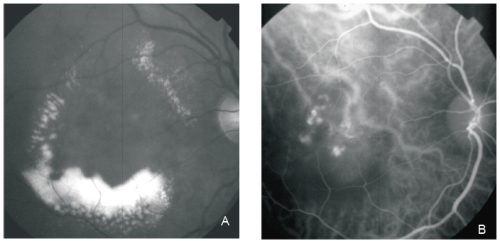

>> Figure 1. Polypoidal choroidal vasculopathy.

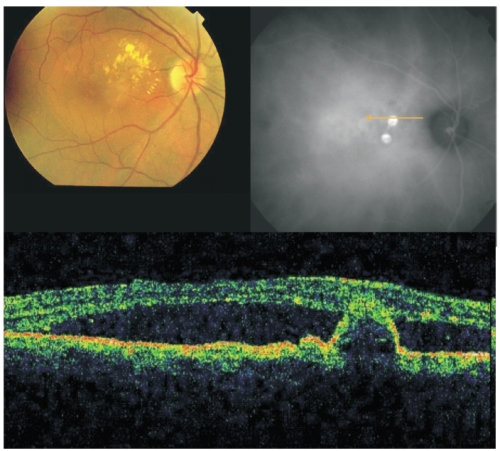

>> Figure 2- Fundus colour photography with lipidic exudation and a redish-orange, spheroid, subretinal mass located at the macular area associated with macular edema.

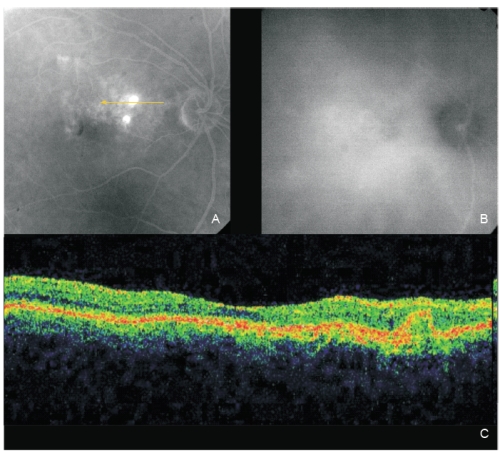

>> Figure 3- Same eye of Figure 2 after one photodynamic therapy session.

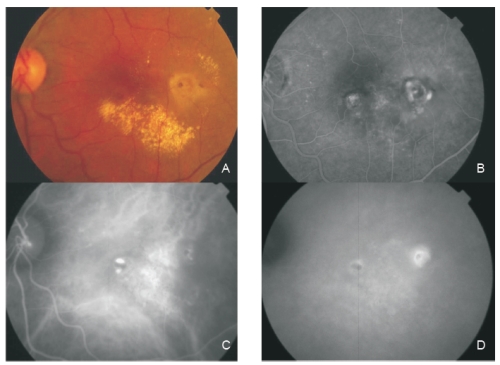

>> Figure 4: Fundus colour photography (A) reveals the presence of circinate lipidic exudation surrounding a redish-orange lesion temporal to the fovea.



Differential diagnosis



Differential diagnosis of PCV with central serous chorioretinopathy, AMD with CNV, inflammatory conditions and tumors is not always easy and needs ICG for a clear differentiation.

Polypoidal choroidal vasculopathy is a primary cause of macular serous retinal detachment without hemorrhage in patients over 50 years of age in Asian population(41).

Since clinical and fluorescein angiographic findings are often indistinguishable among central serous chorioretinopathy, PCV, and occult choroidal neovascularization, indocyanine green angiography might help to establish a more definitive diagnosis(22,42).

Central serous chorioretinopathy shows staining or late leakage but not an abnormal choroidal vascular network neither polyps.

The differential diagnosis becomes more challenging when lipid exudation and small PED are associated. ICG may be helpful differentiating PED from polypoidal lesions.

Small PED from central serous chorioretinopathy become hypofluorescent in late phases ICG and hyperfluorescent in late phases fluorescein angiography.

In contrast, polypoidal lesions are usually hyperfluorescent in late phases ICG because of its vascular nature(22).

PCV represents a subtype of CNV in AMD(4,16,23,24,25).

However some features distinguish PCV from other subtypes of CNV: eyes with PCV are characterized by a higher incidence of neurosensory detachments, greater neurosensory detachment height, and less intraretinal oedema than eyes with occult or predominantly classic CNV(43).

Non polypoidal lesions in exudative AMD patients tend to produce small calibre vessels that are associated with grayish membranes not easily observed clinically, in contrast with the redish-orange lesions clinically observed in PCV and corresponding to vascular saccular polypoid lesions(24,43,44,45).

Stromal choroidal fibrosis is common in predominantly classic and occult lesions but is quite rare in PCV.

PED associated with CNV in AMD has a poor prognosis whilst PED in PCV lesions virtually never forms fibrotic scars(22,24,38).

The natural evolution of CNV in AMD eyes to fibrosis and disciform scar is not observed in PCV eyes.

Tumoral lesions like choroidal circumscribed hemangioma, renal cell carcinoma or metastasis from carcinoid syndrome may also be confused with PCV(38). Again ICG is essential for differentiation.

Choroidal hemangiomas show, in general, a rapid filling of dye in very early phases and a washout in late phases.

ICG characteristic lesions of PCV are not observed in choroidal or metastatic tumors and ultrasound is also effective for characterization of the tumoral mass.

Inflammatory lesions like, posterior scleritis, multifocal choroiditis, panuveitis, acute posterior multifocal placoid pigment epitheliopathy, Harada disease, sympathetic uveitis, birdshot chorioretinopathy may also be confused with PCV.

PCV does not course with anterior or posterior uveitis neither with pain or staining of the optic disc in fluorescein angiography(4,22,24,38).

Lipid deposition, often observed in PCV is not commonly seen in inflammatory conditions.

Scleral or choroidal thickening and liquid in the subtenon space have never been described in PCV eyes(24,38).



Treatment



Treatment of PCV lesions is only recommended when central vision is being threatened by persistent and progressive exudative changes.

Otherwise, a conservative approach is recommended.

Different treatment modalities like laser photocoagulation, transpupillary thermotherapy, photodynamic therapy with verteporfin (PDT), and surgery or intravitreal antiangiogenic drugs have been reported.

However, only one randomized, controlled study has been performed to prove the efficacy and safety of Ranibizumab Vs PDT or PDT plus Ranibizumab (the EVEREST trial).

Direct laser photocoagulation of leaking polyps has proven short-term safety and efficacy for extrafoveal lesions(44,45,46,47).

Other authors however described poor results(48) and persistence or even increasing exudation in up to 44% of the cases(16), or VA decrease of 2 or more lines in near half of the eyes and legal blindness in up to two third of the eyes(37).

Yuzawa et al.(38) reported good efficacy of laser photocoagulation in near 90% of the eyes if all the polyps and abnormal vascular network were treated.

If the treatment involved only the polyps more than half of the eyes suffered VA decrease related with exudation, recurrences, or foveal scars. Direct laser photocoagulation of feeder vessels, identified in ICG, was also reported as showing VA improvement of 2 or more lines in 8 out of 15 eyes(49).

Considering the possibility of using other treatment modalities, laser photocoagulation should be reserved for well defined extrafoveal active polyps.

Transpupillary thermotherapy has shown to be useful in PCV(50).

A large number of reports on photodynamic therapy with verteporfin in subfoveal PCV has been published(23,27,51-55).

Results at one year and even at two years are apparently superior to those of PDT in predominantly classic or occult CNV.

A longer follow-up shows a trend to a progressive but not significant VA decline at two(55) and 3 years follow-up(56): the rate of eyes gaining a significant amount of vision dropped from 26% in the first year to 15% in the third year, and the rate of eyes with significant VA loss (3 or more ETDRS lines) increased from 17% to 26%.

A high rate of recurrence (44%) occurred during the 3-years follow-up but it was not associated with significant VA decline(56).

This high rate of recurrences may be associated with a poor response of the vascular network to PDT(57).

VA decline at 3 years may partially be explained by photoreceptors death due to chronic or recurrent neurosensory detachment, massive hemorrhages and progressive retinal PE atrophy.

The number of treatments decreases markedly after the first year from an average of 2.0 to 0.4 and 0.5 in the second and third years respectively(56).

Complications like subretinal haemorrhages, haemorrhagic PED or even massive hemorrhages have been associated to PDT in PCV eyes(58).

However, all of these complications may also occur without any treatment.

Surgical removal of polypoidal lesions and associated hemorrhages has been reported(16-20,59) with and without macular translocation.

Considering the potential alternative treatments and the high rate of serious complication macular translocation is no longer being considered for PCV(60).

The relatively large vascular lesions of PCV patients needs to be considered if a vitrectomy is planned in cases without associated massive hemorrhage.

Intravitreal antiangiogenic drugs, like bevacizumab(61) and ranibizumab(62) have been used for treating PCV eyes.

Ranibizumab short-term results(62) seem to be promising in terms of maintenance of VA or VA improvement, resolution of subretinal fluid and PED.

Polyps were reported to disappear in 69% of the cases, at 3 months when using ranibizumab(62) but not with bevacizumab(61).

Intravitreal bevacizumab appeared also to result in stabilisation of vision and reduction of exudative retinal detachment in PCV patients in short-term evaluation.

However, it had limited effectiveness in causing regression of the polypoidal lesions(61).

Some exudative AMD eyes refractory to ranibizumab or bevacizumab may be, in fact, PCV cases.

Combined treatments associating PDT and intravitreal ranibizumab or bevacizumab have been reported to show good efficacy in these refractory cases of AMD(63).

The EVEREST study is the first multi-center, double-masked, indocyanine green angiography (ICG-A)-guided randomized controlled trial with an angiographic treatment outcome designed to assess the effect of Visudyne® (verteporfin photodynamic therapy) alone or in combination with Lucentis® (ranibizumab) compared with Lucentis® alone in patients with symptomatic macular polypoidal choroidal vasculopathy (PCV).

A total of 61 PCV patients of Asian ethnicity from 5 countries (Hong Kong, Taiwan, Korea, Thailand, and Singapore) participated in the study.

The six months EVEREST study results(64) suggests that in a majority of patients, Visudyne® therapy, with or without Lucentis®, may lead to complete regression of the polyps that can cause vision loss in patients with PCV.

A complete polyp regression (primary endpoint) was achieved in 77.8% of patients who received the Visudyne® – Lucentis® combination, in 71.4% of Visudyne® monotherapy patients and in 28.6% of patients in the Lucentis® monotherapy group (p=0.0018 for combination, p=0.0037 for Visudyne® vs. Lucentis®).

Best corrected visual acuity from baseline to month six improved in average in all groups with patients in the combination group achieving the highest gain (+10.9 letters from baseline).

Lucentis® monotherapy patients gained +9.2 letters, and Visudyne® monotherapy patients +7.5 letters.

Differences between the groups are not statistically significant.

All therapies were well tolerated and the safety findings were consistent with the established safety profiles of Visudyne® and Lucentis®.



COMBINED THERAPIES.



The adjunctive use of IVTA duing PDT did not appear to result in additional benefit in the PDT treatment of PCV. A retrospective analysis of PCV patients who underwent V®-PDT with or without intravitreal triamcinolone acetonide (IVTA), with a follow-up of 2 or more years, was reported in 27 eyes and showed to have a non-sustained effect after 1 year (65)

The combination therapy between PDT and an anti-VEGF showed encouraging results including improved vision, reduced incidence of subretinal hemorrhage, and reduced recurrence of polyps when compared to PDT monotherapy for PCV. Reduced-fluence PDT combined with IVB (intravitreous Bevacizumab) for PCV improved vision and reduced complications (66) even at two years (67)

Combined treatment with PDT plus anti-VEGF should be considered in eyes diagnosed with leakage from the branching vascular network and the polyps, in eyes with visible exudation associated with pigment epithelial detachment,  when ICGA results do not permit clearly to distinguish between PCV and CNV and when both conditions co-exist (68,69)



Conclusion



PCV may be considered a subtype of exudative AMD.

ICG is always mandatory for the diagnosis of PCV, showing a unique lesion – an abnormal inner choroidal vascular network with polypoidal structures at the borders.

OCT and fundus findings may complement the diagnosis.

PCV needs to be differentiated from other forms of exudative AMD, central serous chorioretinopathy, inflammatory conditions and some choroidal tumors.

Photodynamic therapy with Visudyne, alone or in combination with antiangiogenic drugs, seems to be necessary for a complete resolution of the polypoidal lesions.



>> References



Last revision: August 2013 by Rufino Silva
